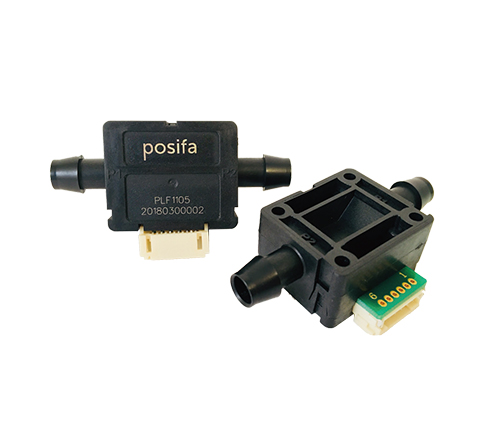

Posifa designed the PLF2000 series of liquid flow sensors to replace mechanical turbine flow sensors. With a MEMS thermal flow die at its core, PLF2000 is far more accurate and repeatable, even when flow is pulsatile and provides a linear digital output. Because it has no moving parts, PLF2000 does not get stuck nor suffer mechanical breakdown. Cleaning does not require disassembly. Also, because it does not introduce an obstruction (i.e. turbine) in the flow path, it presents minimal flow resistance, making it possible to circulate liquid via gravity, a boiler, or a low-power pump.
PLF2000 features Posifa’s third-generation thermal flow die, benefiting from the latest innovations in microfabrication. The sensor die uses a pair of thermopiles to detect changes in temperature gradient caused by mass flow, delivering excellent signal-to-noise, and repeatability. The “solid state” thermal isolation structure eliminates the need for surface cavity or fragile membrane used in competing technologies. The sensor die, with its silicon carbide protective film, is capable of direct contact with liquid, allowing the highest level of sensitivity and minimizing the cost of packaging.
PLF2000 complies with NSF/ANSI 61: Drinking Water System Components – Health Effects and can be used safely in water and beverage appliaces.PLF2000 provides both analog (voltage) and digital I2C output.
應用:咖啡機和速遞機
飲水機凈水器和過濾系統
飲料自動售貨機
洗滌劑自動售貨機
清潔化學品混合系統
液體冷卻系統功能:
無移動部件
響應時間極快（<5 ms）
可與脈動流系統一起使用
不會阻塞流量（低壓降）
維護不需要拆卸

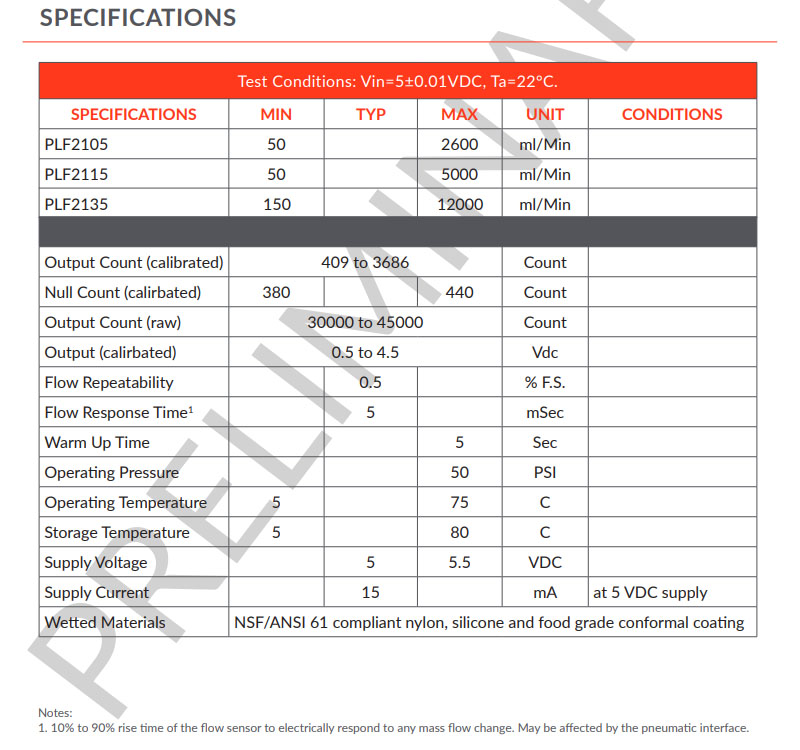

最大額定值:
工作溫度：5到75°C
PLF2000 features Posifa’s third-generation thermal flow die, benefiting from the latest innovations in microfabrication. The sensor die uses a pair of thermopiles to detect changes in temperature gradient caused by mass flow, delivering excellent signal-to-noise, and repeatability. The “solid state” thermal isolation structure eliminates the need for surface cavity or fragile membrane used in competing technologies. The sensor die, with its silicon carbide protective film, is capable of direct contact with liquid, allowing the highest level of sensitivity and minimizing the cost of packaging.
PLF2000 complies with NSF/ANSI 61: Drinking Water System Components – Health Effects and can be used safely in water and beverage appliaces.PLF2000 provides both analog (voltage) and digital I2C output.
飲水機凈水器和過濾系統
飲料自動售貨機
洗滌劑自動售貨機
清潔化學品混合系統
液體冷卻系統功能:
無移動部件
響應時間極快（<5 ms）
可與脈動流系統一起使用
不會阻塞流量（低壓降）
維護不需要拆卸
最大額定值:
工作溫度：5到75°C
儲存溫度：5至80°C•工作壓力：50 psi
